Sample Findings

Early detection. Clear documentation.

Explore anonymized field findings and an illustrative sample report. Simulated imagery is clearly labeled; client and facility information has been removed from field examples to protect privacy.

Sample Reports

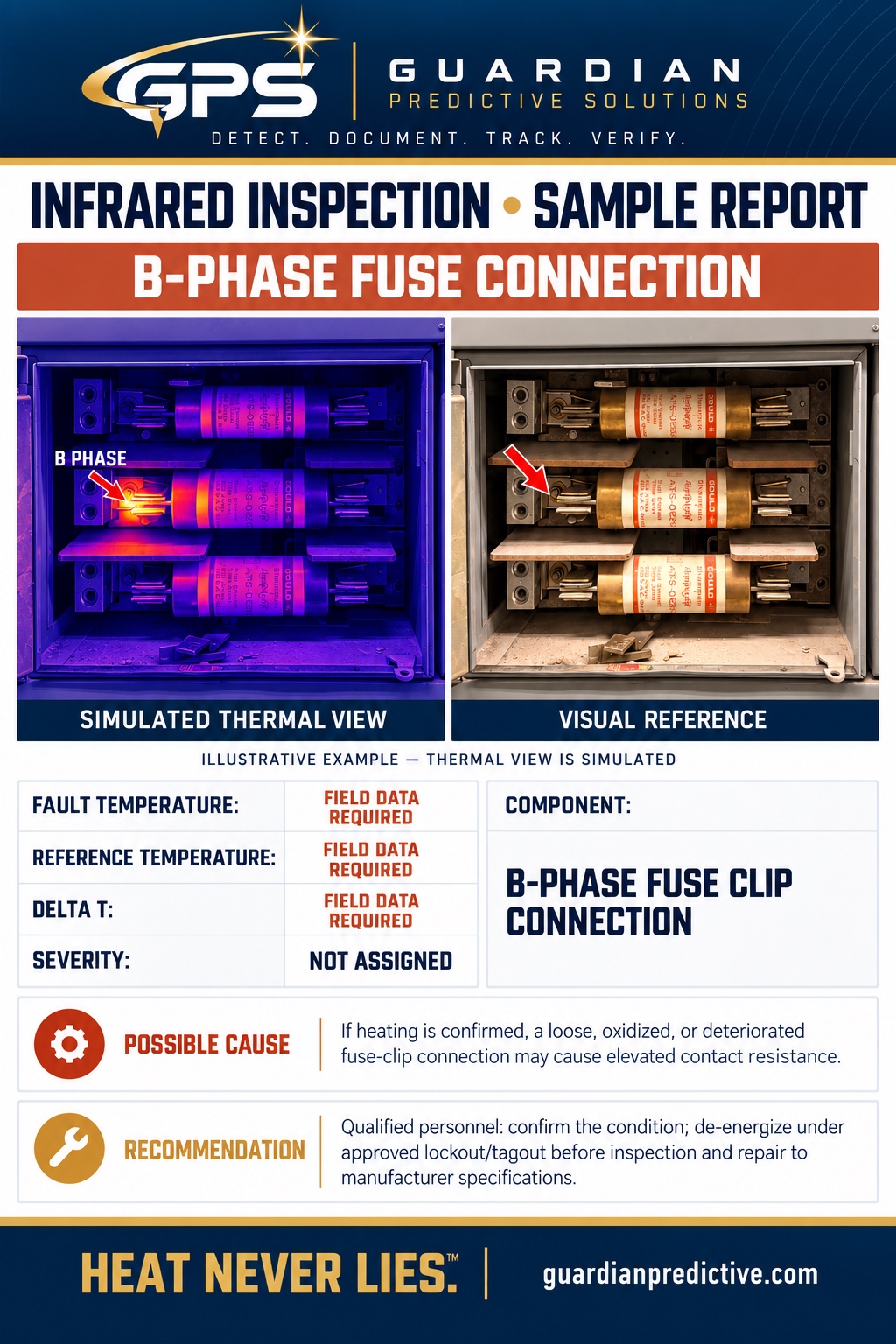

B-Phase Fuse Connection

Illustrative example — thermal view is simulated. This sample demonstrates the GPS report format with thermal and visual references. Field measurements are required; severity has not been assigned.

GPS illustrative B-phase fuse clip connection sample report with a simulated thermal hotspot and visual reference; field temperature data required and severity not assigned
Simulated thermal view · Illustrative sample report
View Full-Size Sample Report
Critical Findings

High-priority conditions. Clearly documented.

Three anonymized critical electrical anomalies documented during commercial and industrial infrared inspections. Select any report to view it full size.

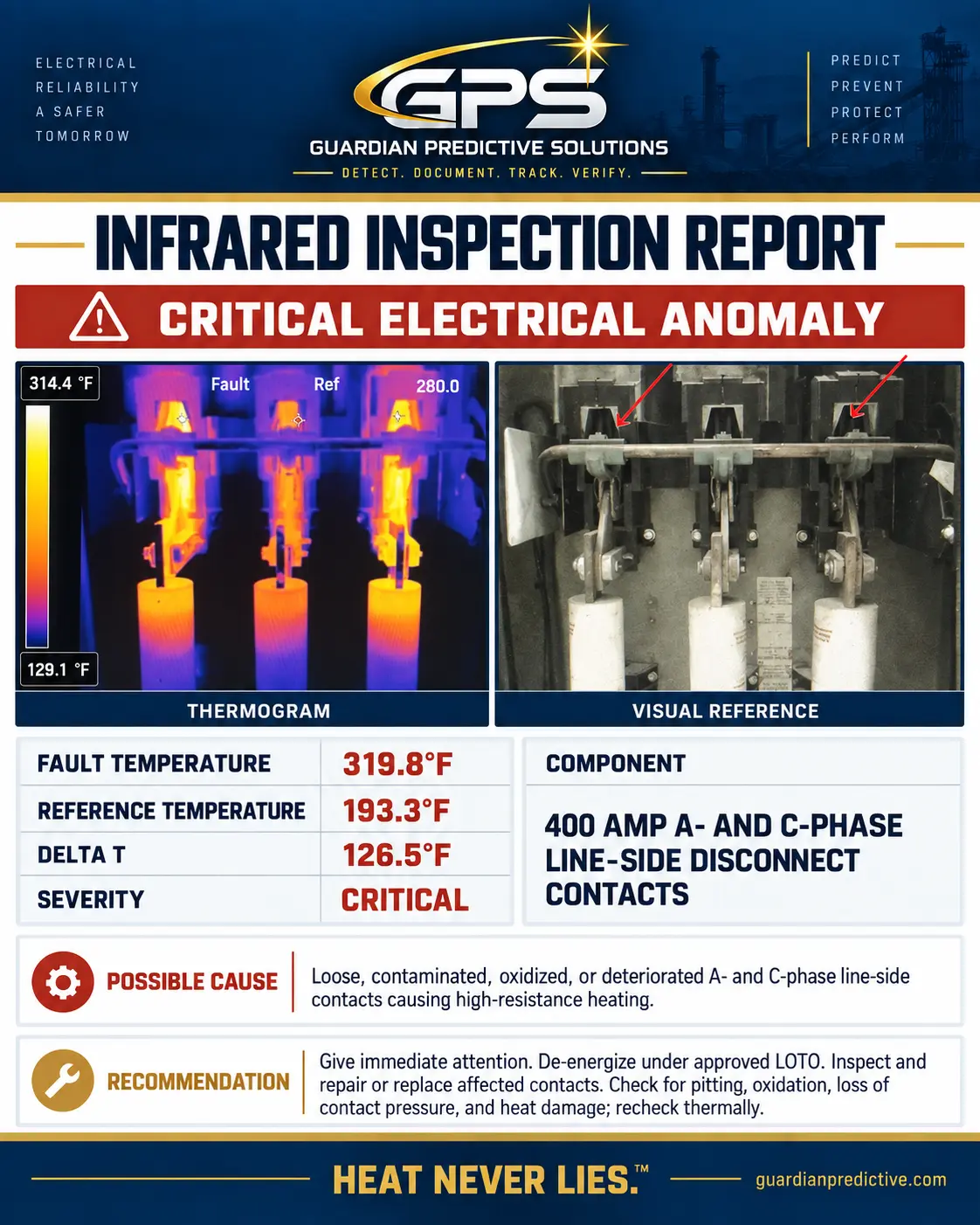

GPS critical infrared report showing elevated heating at 400 amp A-phase and C-phase line-side disconnect contacts
● CriticalΔT 126.5°F

400A Disconnect

A- and C-phase line-side disconnect contacts

View Full Report →
Safety note: Report recommendations are condition-specific and intended for review by qualified personnel using applicable safety procedures, including lockout/tagout where required.
Finding 01

B-Phase Load-Side Connection

Anonymized thermogram showing elevated heating at the B-phase fused-disconnect connection
Thermal Image
Anonymized visible reference image of the fused disconnect
Visible Reference
● Minor

Equipment: Fused disconnect

120.2°FFault
107.7°FReference
12.5°FDelta T
Observed
Elevated thermal condition at the B-phase load-side connection.
Possible cause
A loose, contaminated, or oxidized termination may be contributing to the observed heating.
Clear Fault Report
Have qualified personnel evaluate the connection. As appropriate, de-energize using approved procedures, inspect the connection and surrounding components, and review circuit loading and balance.
Finding 02

A-Phase Line-Side Connection

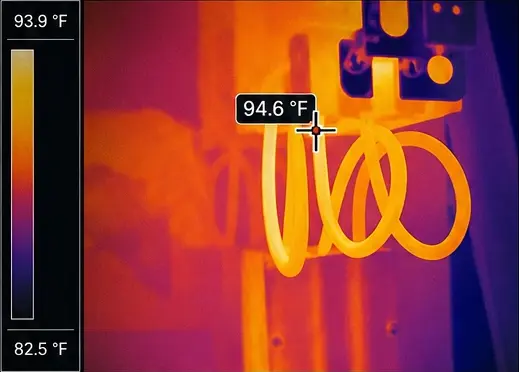

Anonymized thermogram showing early-stage elevated heating at an A-phase wire lug
Thermal Image

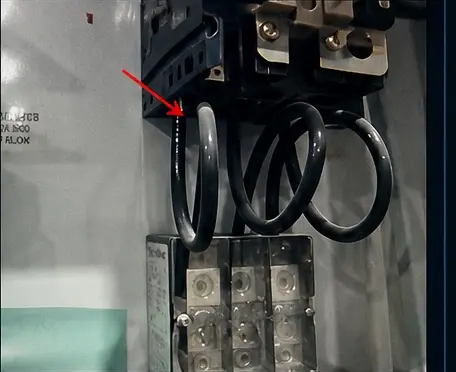

Anonymized visible reference image of the A-phase wire lug
Visible Reference
● Minor

Equipment: Control panel / main switchboard connection

94.6°FFault
92.0°FReference
2.6°FDelta T
Observed
Early-stage elevated heating at the A-phase line-side wire lug.
Possible cause
A loose, contaminated, or oxidized connection may be contributing to the observed early-stage resistive heating.
Clear Fault Report
Monitor and have qualified personnel evaluate the connection. As appropriate, de-energize using approved procedures, inspect surrounding components, and review circuit loading and balance.
Inspection context: These anonymized findings reflect actual field documentation under the observed operating conditions. Thermal interpretation depends on accessibility, load, ambient conditions, emissivity, equipment design, and operating state. A thermal pattern alone does not establish root cause.
View Sanitized Sample Report →Request an Inspection Quote →
The GPS Standard

Clear findings for informed decisions.

Thermal + VisibleImagery
MeasuredTemperature Data
PrioritizedSeverity
OrganizedNext Actions
